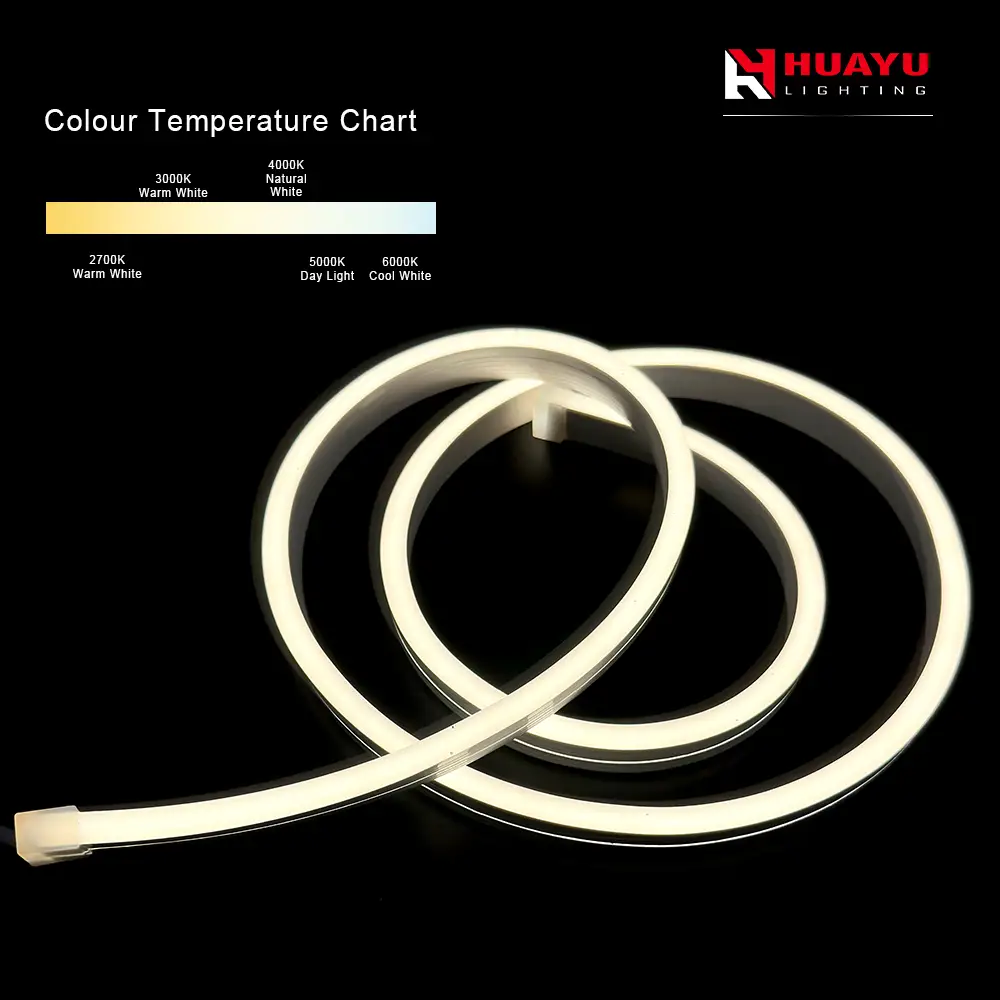

LED Neon Strip- 10X18mm- bending side vertically -single color

Our LED neon belt adopts a unique vertical bending design, which can easily integrate with your environment easily, bringing you chic and unique effects. Regardless of whether you want to use the signboards, decorating your family, or party to add some exciting atmosphere, our products can meet your needs.

In addition, our LED neon belt provides monochrome options, you can choose according to personal preferences or activities. We provide a variety of colors for you to choose from. Whether it is soft and warm white, or gorgeous red, green, blue and other bright colors, we can meet your diverse needs.

Inquiry

Write a Review

Dimension	W10 * H 18mm
LED Source	SMD5050
LED Brand	SAN'AN
LED Qty	60LEDs per meter
Luminous Flux	20-22lm per LED
Input Voltage	12VDC / 24VDC
Power	14.4 watts per meter
Color Temperature	Single Color / Dual Color / RGB / SPI RGB /DMX512 Single Color
Cut Unit	Every 5cm(12VDC) / Every 10cm(24VDC)
Beam Angle	160°
IC Model	TM1914A Built-out IC
PCB Width & Diffuser	10mm width, silicone diffuser
Operating Temperature	-20℃to 50℃
IP Rating	IP67
Bending Direction	Side bending
Warranty	3 years
Max. Run Length	5 meters per roll as standard
Certifications	ISO9001, ETL, CE, RoHS

Product Features

Anti-UV protection

High transmittance, 15-20% higher than the industry

55℃-40℃ EXTREME ENVIRONMENTS CAN ALSO BE USED

100% dow-corning silicone food-grade silicone

A Variety Of Wire Entry Methods

Suitable For Different Installation Sites

5 (4)

6 (3)

7 (4)

Customized Service

Always Meet Your Demand

LED Neon Strip- 10X18mm- bending side vertically -single color 9

5 years warranty

LED Neon Strip- 10X18mm- bending side vertically -single color 10

No MOQ

LED Neon Strip- 10X18mm- bending side vertically -single color 11

Customized

LED Neon Strip- 10X18mm- bending side vertically -single color 12

Free Sample

LED Neon Strip- 10X18mm- bending side vertically -single color 13

3 Min.quote

LED Neon Strip- 10X18mm- bending side vertically -single color 14

Shipping in 24h

LED Neon Strip- 10X18mm- bending side vertically -single color 15

Free design service

LED Neon Strip- 10X18mm- bending side vertically -single color 16

Learn more about services

Certificates

zhengshu1

zhengshu2

zhengshu3

zhengshu4

zhengshu5

zhengshu6

zhengshu7

zhengshu8

Project Cases

1 (7)

2 (3)

FAQ

How to reuse a leftover led strip?

If the LED strip you have purchased is cuttable and you are cutting at the LED strip’s cut mark, you can reuse the leftover LED strip. You can use these leftover LED strips without wires with quick solderless connectors.

How much power do LED strips use?

Generally speaking, power W/m is marked on the label of the led strip. Then, the total power of the led strip is equal to the W/m multiplied by the total meters.Common wattages for led strip in the market are 5w/m, 10w/m, 15w/m, 20w/m. For example, the led strip is 15W/m, and you use 5m to decorate your Kitchen，then total power is 15*5=75W

Can I use a 24 V power supply to power 12 V LED strips?

No, this will damage the led strip. If you connect a 12V strip to a 24V supply by mistake, the led strip will be very bright and hot. Even you can smell burning. Eventually, the led strip will be damaged, and no light at all. However, if you can disconnect the led strip quickly (e.g., within 5 seconds), the led strip is not completely damaged and will still be lighted on.
