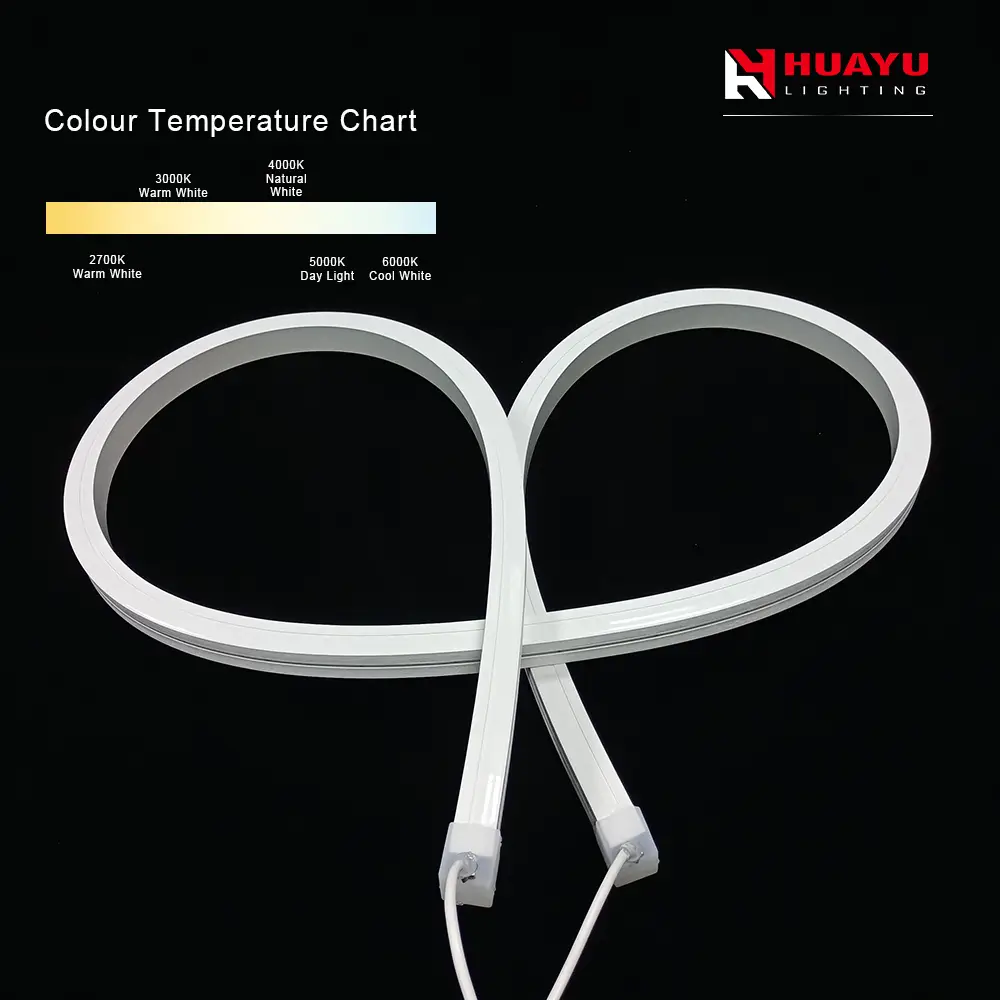

LED Neon Strip- 20X18mm- bending direction vertically -single color

We are very proud to introduce our new product -LED neon belt. The product has a size of 20x18mm, making it easy to install and manage in compact space. Our LED neon belt is designed in a vertical direction to enable it to adapt to various application scenarios.They are not only energy -saving and environmentally friendly, but also easy to operate and maintain.This neon light belt is a monochrome style that provides a variety of options to meet your lighting needs.

Inquiry

Write a Review

Dimension	W20* H 18mm
LED Source	SMD2835
LED Brand	EPISTAR
LED Qty	120LEDs per meter
LED BIN	3SDCM
Luminous Flux	24-26Im per LED
Input Voltage	12VDC / 24VDC
Power	12 watts per meter
Color Temperature	2700-6500K / Red / Blue / Green / Yellow / Golden / Ice Blue
Cut Unit	Every 2.5cm(12VDC) / Every 5cm(24VDC)
Beam Angle	120°
CRI	Ra80 / Ra90
PCB Width & Diffuser	8mm width, silicone diffuser
Operating Temperature	-20℃ to 50℃
IP Rating	IP67
Bending Direction	Up & Down bending
Warranty	3 years
Max. Run Length	5 meters per roll as standard
Certifications	ISO9001, ETL, CE, RoHS

Product Features

Focus on Light Efficiency Uniform Lighting

High transmittance 15-20% higher than the industry

55℃ - 40℃ EXTREME ENVIRON MENTS CAN ALSO BE USED

100% DOW-CORNING SILICONE FOOD-GRADE SILICONE

A Variety Of Wire Entry Methods

Suitable For Different Installation Sites

5 (4)

6 (3)

7 (4)

Customized Service

Always Meet Your Demand

LED Neon Strip- 20X18mm- bending direction vertically -single color 9

5 years warranty

LED Neon Strip- 20X18mm- bending direction vertically -single color 10

No MOQ

LED Neon Strip- 20X18mm- bending direction vertically -single color 11

Customized

LED Neon Strip- 20X18mm- bending direction vertically -single color 12

Free Sample

LED Neon Strip- 20X18mm- bending direction vertically -single color 13

3 Min.quote

LED Neon Strip- 20X18mm- bending direction vertically -single color 14

Shipping in 24h

LED Neon Strip- 20X18mm- bending direction vertically -single color 15

Free design service

LED Neon Strip- 20X18mm- bending direction vertically -single color 16

Learn more about services

Certificates

zhengshu1

zhengshu2

zhengshu3

zhengshu4

zhengshu5

zhengshu6

zhengshu7

zhengshu8

Project Cases

1 (7)

2 (3)

FAQ

How much power do LED strips use?

Generally speaking, power W/m is marked on the label of the led strip. Then, the total power of the led strip is equal to the W/m multiplied by the total meters.Common wattages for led strip in the market are 5w/m, 10w/m, 15w/m, 20w/m. For example, the led strip is 15W/m, and you use 5m to decorate your Kitchen，then total power is 15*5=75W

How to keep my LED strip lights from overheating?

1.Use the appropriate power for the LED strip, generally recommended for 8mm PCBs with a maximum power of 15W/m, 10mm, 12mm PCBs with a maximum power of 20W/m.
2. Using double side thermal conductive tape to attach the LED strip to the aluminum profile for better heat dissipation.
3. Ensure air circulation in the installation area, as air circulation helps dissipate heat from the LED strip.
4. Ensure that the ambient temperature is not too high. The maximum ambient temperature should not typically exceed 50 degrees.

Can I use a 24 V power supply to power 12 V LED strips?

No, this will damage the led strip. If you connect a 12V strip to a 24V supply by mistake, the led strip will be very bright and hot. Even you can smell burning. Eventually, the led strip will be damaged, and no light at all. However, if you can disconnect the led strip quickly (e.g., within 5 seconds), the led strip is not completely damaged and will still be lighted on.
